Racingline Audi (C8) Air Suspension Height Adjustable Lowering Links

Racingline Audi (C8) Air Suspension Height Adjustable Lowering Links

Get the lowered stance you want on your air-suspension Audi without losing any factory functionality. The Racingline Height Adjustable Lowering Links give you precise control over ride height, letting you fine-tune each corner of the car to sit exactly where you want it – up to 50mm (2 inches) lower than stock, front and rear.

Unlike traditional lowering methods, these links work with your factory air suspension rather than replacing it. That means you keep ride comfort, the MMI ride height modes and the lift function for awkward driveways or speed bumps, all without any coding, reprogramming or warning lights.

What the links actually do

Your Audi uses suspension level sensors at each corner to tell the car how it’s sitting. From the factory, these are connected by fixed plastic links. Racingline’s adjustable links replace those plastic parts and change the angle the sensor reads, which in turn tells the air suspension to sit lower. Nothing else in the system is altered, so the car continues to behave exactly as Audi intended, just at the height you choose.

Because the air suspension keeps full functionality, the exact drop will vary slightly between the different MMI ride height modes. The ‘raise’ setting still works too, so you’ve not lost any practicality.

Key features

• Adjustment range from stock height down to 50mm / 2″ lower, front and rear
• Set ride height in situ – just turn the link body to adjust each corner, no repeated removal needed
• CNC-machined 6061-T6 billet aluminium bodies, anodised gloss black for corrosion resistance
• Left and right-hand stainless steel threaded adjusters in each link

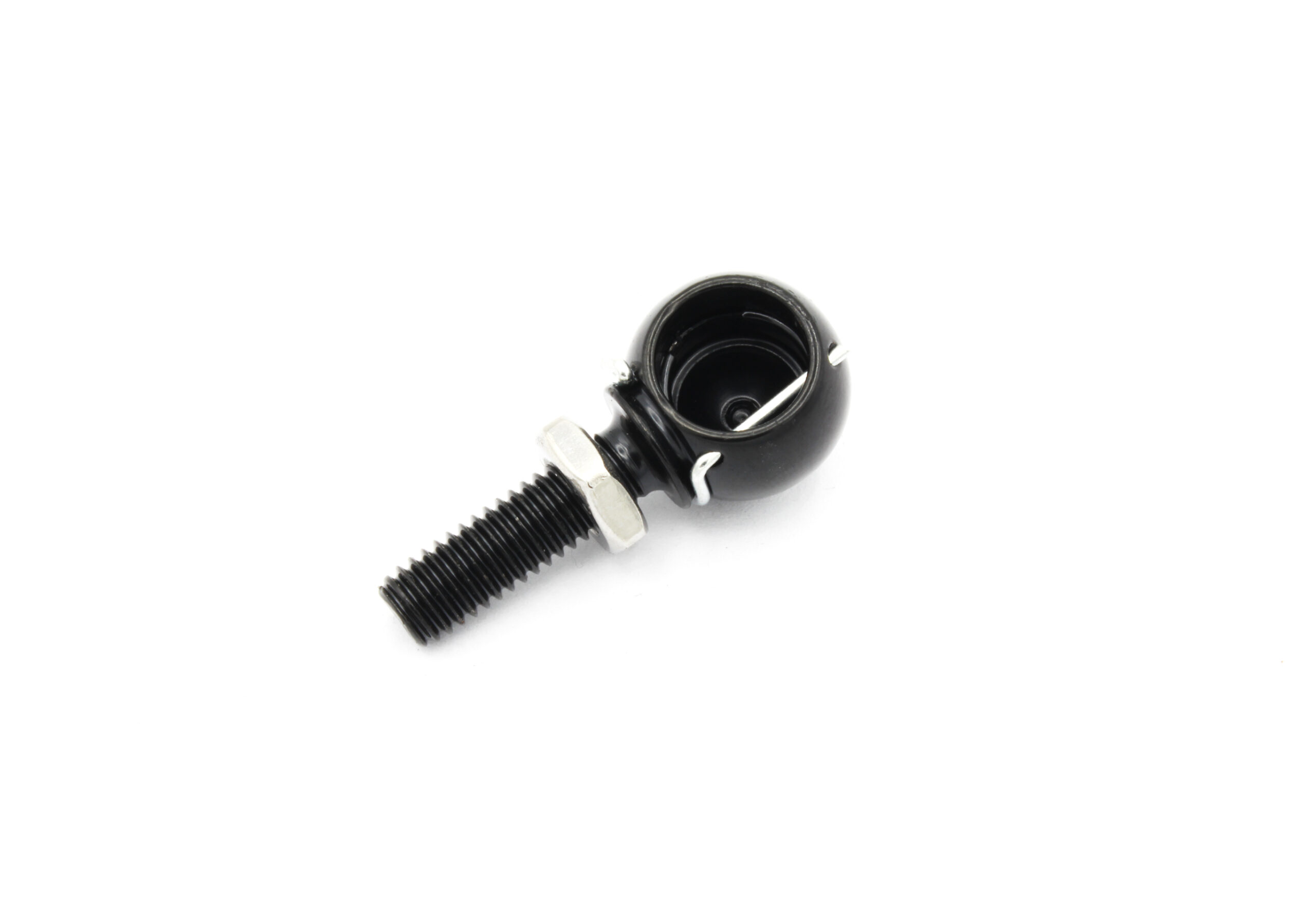

• High-quality ball joints with rubber dust boots for maintenance-free, long-term operation
• Fully reversible install with no ECU coding or reprogramming required

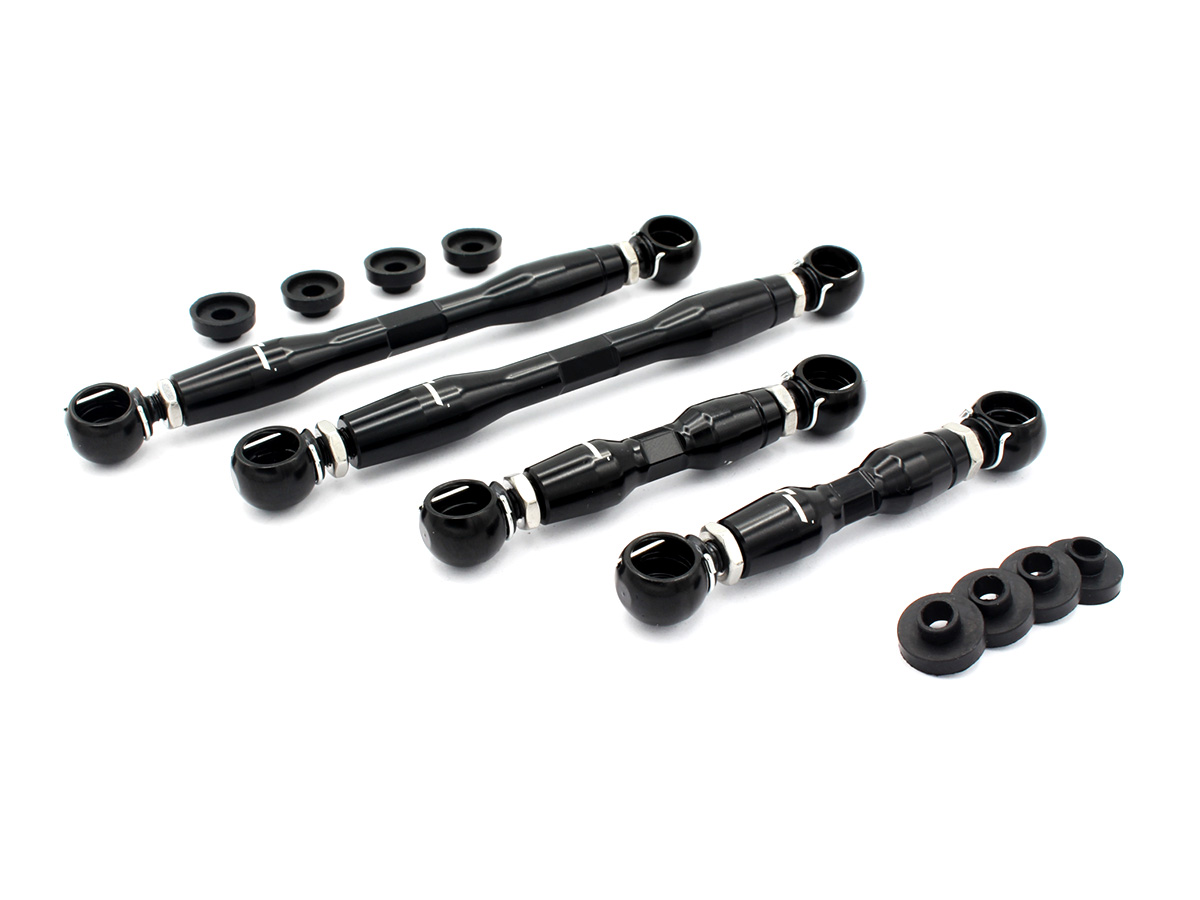

What’s in the box

• 4x Billet aluminium adjuster rods
• 4x Ball joints with right-hand threads
• 4x Ball joints with left-hand threads
• 8x Dust seals

Why it’s a worthwhile upgrade

Lowering the car drops the centre of gravity, which sharpens handling and reduces body roll through corners. Visually, it tightens up the wheel arch gap for a far more purposeful stance. Because you’re not replacing springs, dampers or air struts, ride quality stays exactly as Audi designed it – you simply get to choose where the car sits.

Fitment

These links are designed for the following models fitted with factory air suspension:

• Audi SQ5 2017+
• Audi A6 / S6 / RS6 C8 4K 2018+
• Audi A7 / S7 / RS7 C8 4K 2018+
• Audi Q8 / SQ8 / RSQ8 4M8 2018+
• Audi Q7 / SQ7 4M 2016-2019
• Audi Q7 / SQ7 4M.5 2020+
• Audi e-tron Quattro MLB 2019+
• Porsche Cayenne 2019+
• Lamborghini Urus 2018-2021
• Bentley Bentayga 2016-2021

Please use the vehicle lookup tool or check the Vehicle Fitment tab to confirm these links are correct for your specific model and year before purchase.

Progressive Parts is an authorised UK dealer for Racingline Performance. Every product is supplied direct from Racingline, fully backed by the manufacturer’s warranty and developed in the toughest test environment there is – motorsport.

Applications

Please note, customers are wholly responsible for checking fitment for their vehicle.
