Racingline Differential Magnetic Drain/Fill Plug

Racingline Differential Magnetic Drain/Fill Plug – VWR180003

Protecting your differential and transfer box is one of the simplest yet most overlooked ways to keep your drivetrain healthy. The Racingline Magnetic Drain/Fill Plug Set is designed specifically for MQB platform vehicles with Haldex all-wheel drive systems, helping you remove harmful metal debris from your differential oil at every service.

As an authorised UK Racingline Performance dealer, we supply this plug kit as a genuine upgrade over the standard factory plugs, giving your drivetrain an added layer of protection with very little effort.

Why Fit a Magnetic Drain Plug?

Inside every differential and transfer box, gears mesh under constant load. The harder the car is driven, and the more power it produces, the more tiny ferrous (iron-based) metal particles can end up suspended in the oil. Left unchecked, this debris circulates with the lubricant and can accelerate wear on bearings and gear surfaces.

The Racingline magnetic plug uses a strong magnet to capture these microscopic metal particles, holding them safely away from moving components until your next oil change. It is a small change that makes a meaningful difference to long-term drivetrain reliability, especially on tuned or hard-driven cars.

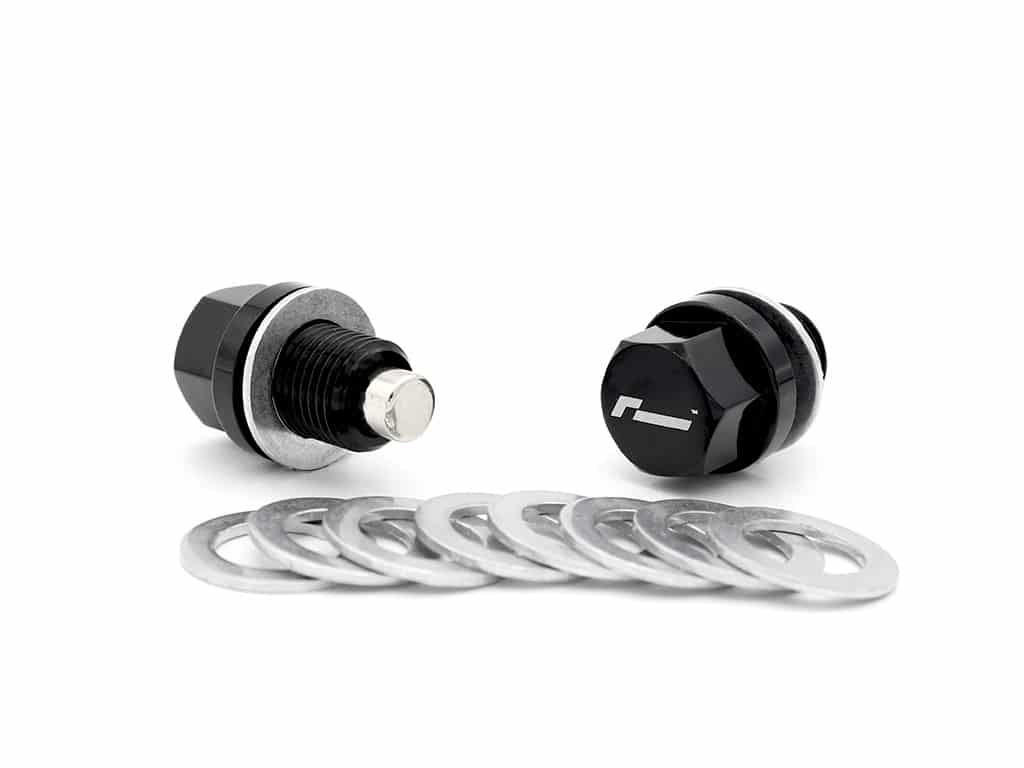

What’s in the Kit?

• 1x Magnetic Differential Oil Drain Plug
• 1x Non-Magnetic Oil Filler Plug
• 10x Sealing Washers (enough for 5 services)

How Many Kits Do You Need?

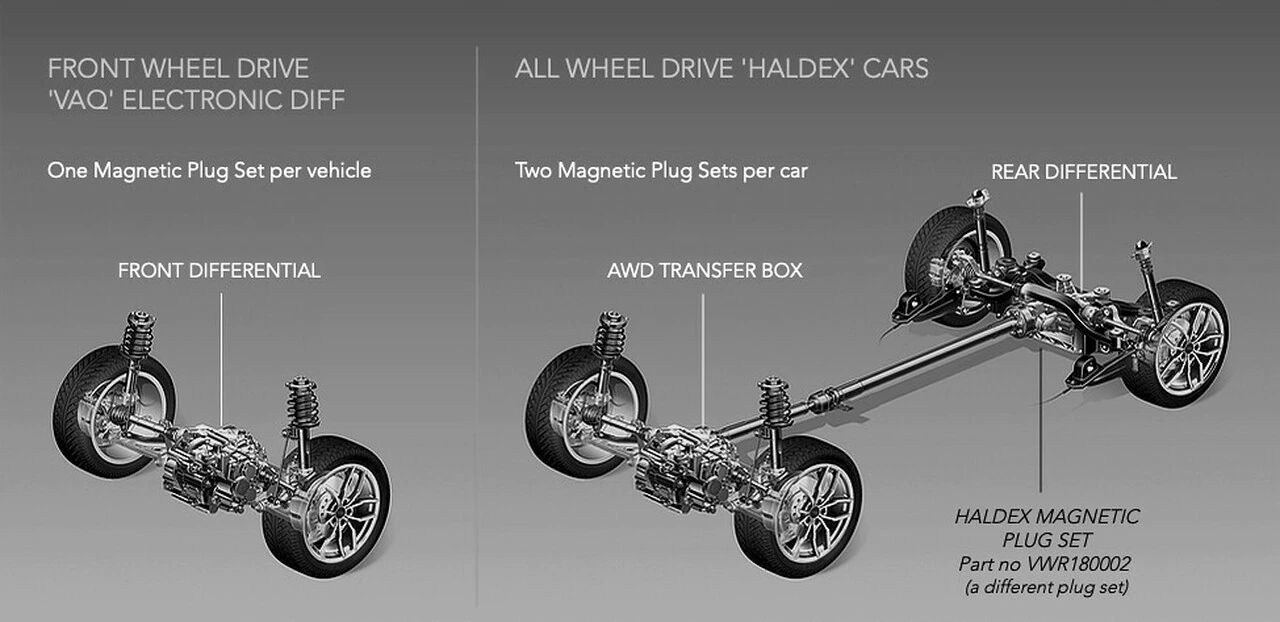

The number of kits required depends on which Haldex generation your vehicle uses. Please read the following carefully before ordering:

Haldex Generation 5 (MQB AWD vehicles): Order 2 kits per vehicle – one for the front transfer box and one for the rear differential final drive.

Haldex Generation 4 (AWD vehicles): Order 1 kit per vehicle for the rear differential final drive.

Haldex Generation 2 (AWD vehicles): Order 1 kit per vehicle for the rear differential final drive.

Fitment

This plug set is designed for a wide range of all-wheel drive Volkswagen Group vehicles using Haldex Generation 2, 4, and 5 systems, including popular Golf R, S3, RS3, Audi TT and Cupra models. To confirm exact fitment for your car, please use the vehicle lookup tool or check the Vehicle Fitment tab on this page.

Simple to Install

There is no special preparation needed. At your next differential or transfer box oil service, simply remove the factory plugs and thread in the Racingline magnetic drain plug and non-magnetic filler plug using the supplied sealing washers. The kit includes enough washers for five services, so you have replacements ready for years of regular maintenance.

Important: Always fit a fresh sealing washer at each service and torque the plugs to the manufacturer’s specification to prevent leaks.

Key Benefits

• Captures harmful ferrous debris from differential and transfer box oil
• Helps extend the working life of gears and bearings
• Direct replacement for OEM plugs – no modifications required
• Supplied with enough washers for five oil services
• Designed and developed by Racingline Performance, a trusted name in VW Group tuning

A small, sensible upgrade that pays dividends over the life of your drivetrain – particularly worthwhile for owners running stage tunes, track days, or simply wanting to give their AWD system the best chance of a long, trouble-free life.

Applications

Please note, customers are wholly responsible for checking fitment for their vehicle.
