Racingline MQB Intercooler System Golf R, S3/TTS, Leon Cupra and Octavia – VWR14G700

Racingline MQB Intercooler System – VWR14G700

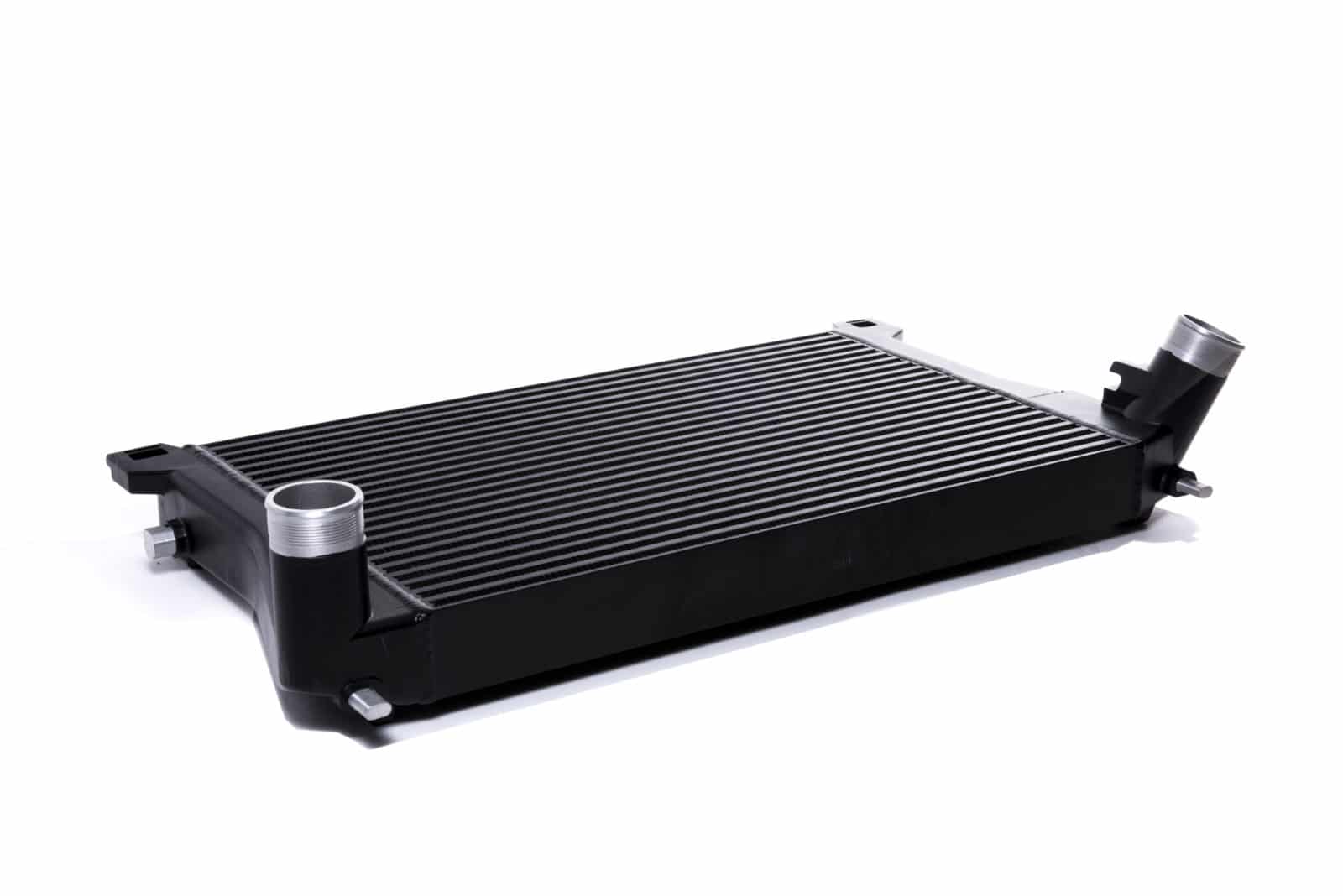

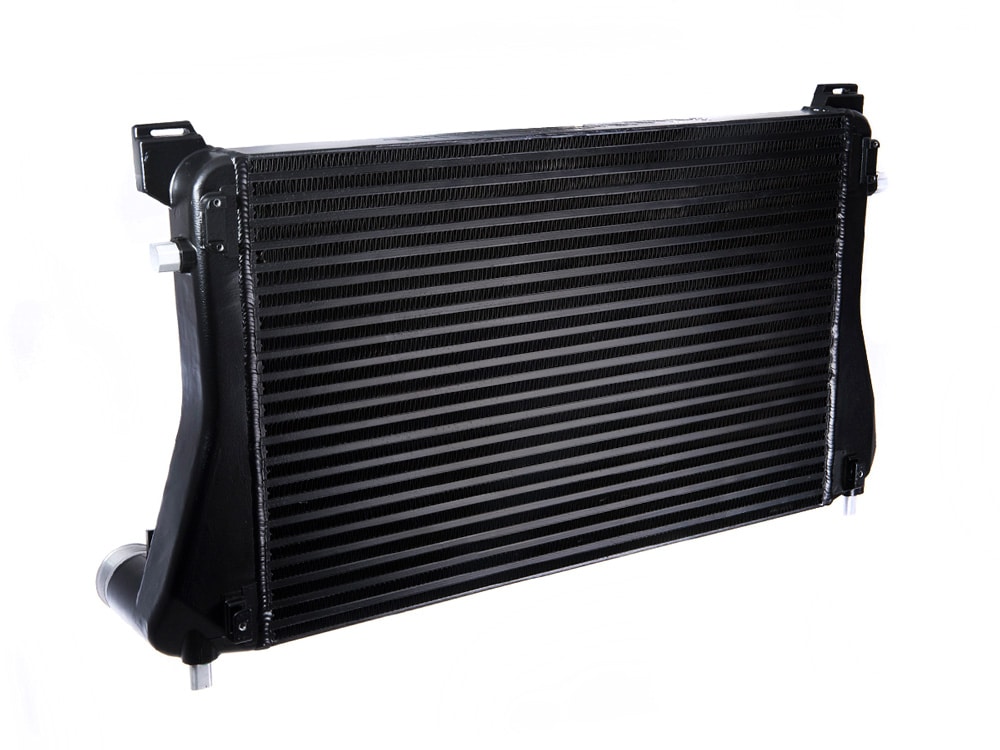

The Racingline VWR14G700 is a direct replacement front-mount intercooler built for MQB-platform performance cars. It addresses a well-known weakness on these vehicles: the standard intercooler struggles under sustained high loads, suffering from heat soak and noticeable power loss when driving hard or after tuning upgrades.

By using a much larger, more efficient core, this upgrade keeps intake air temperatures (IAT) consistently lower. Cooler air is denser air, which helps the ECU deliver full power lap after lap, run after run, without the cool-down periods the factory unit needs.

What an intercooler does

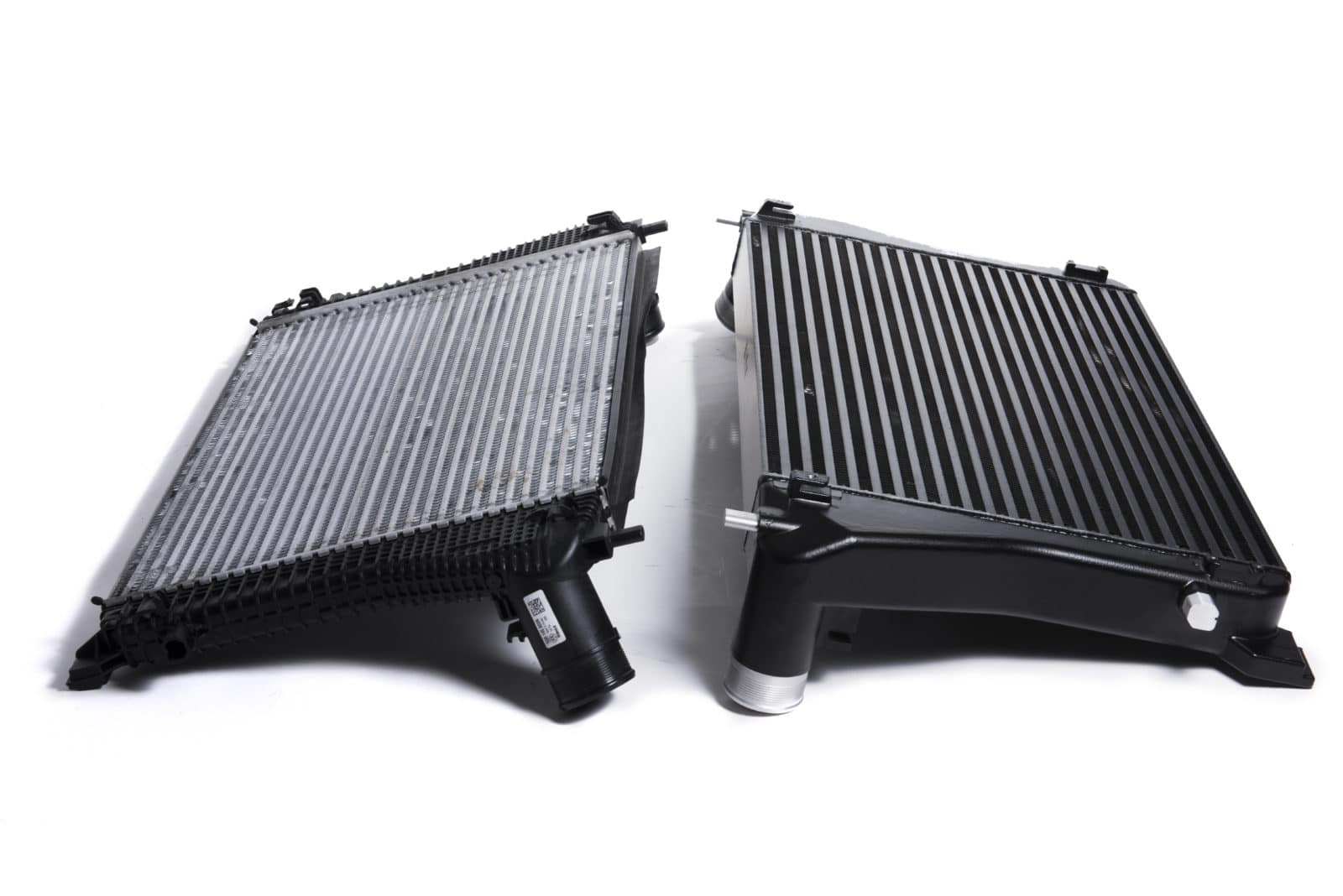

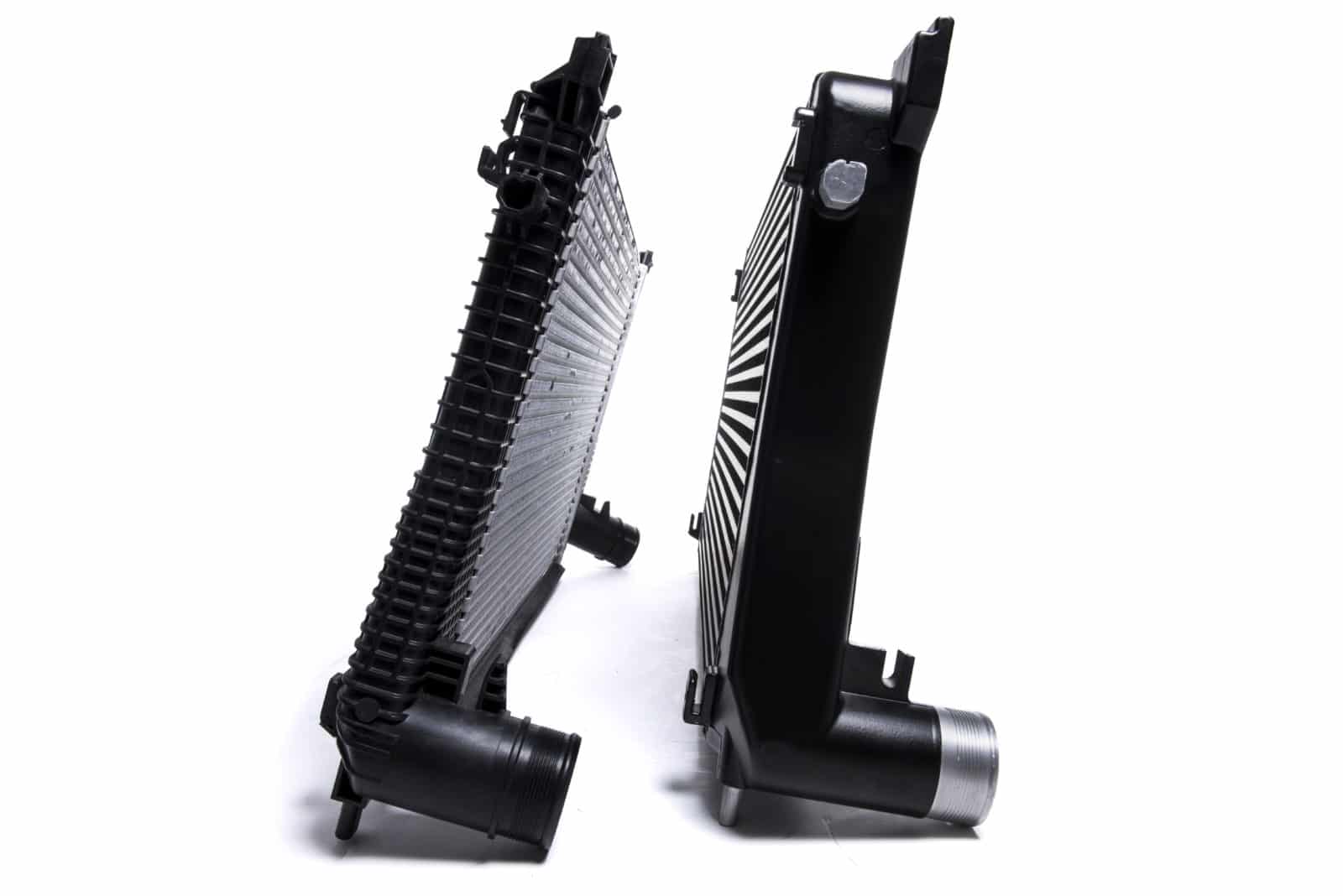

An intercooler is the radiator-like component that cools the hot, compressed air coming from the turbo before it enters the engine. The hotter that air is, the less power the engine can safely make. The factory intercooler on MQB cars is undersized for performance use, so once it heats up, the ECU pulls timing and reduces boost to protect the engine. The Racingline unit holds its cool far better, keeping performance consistent.

Key features

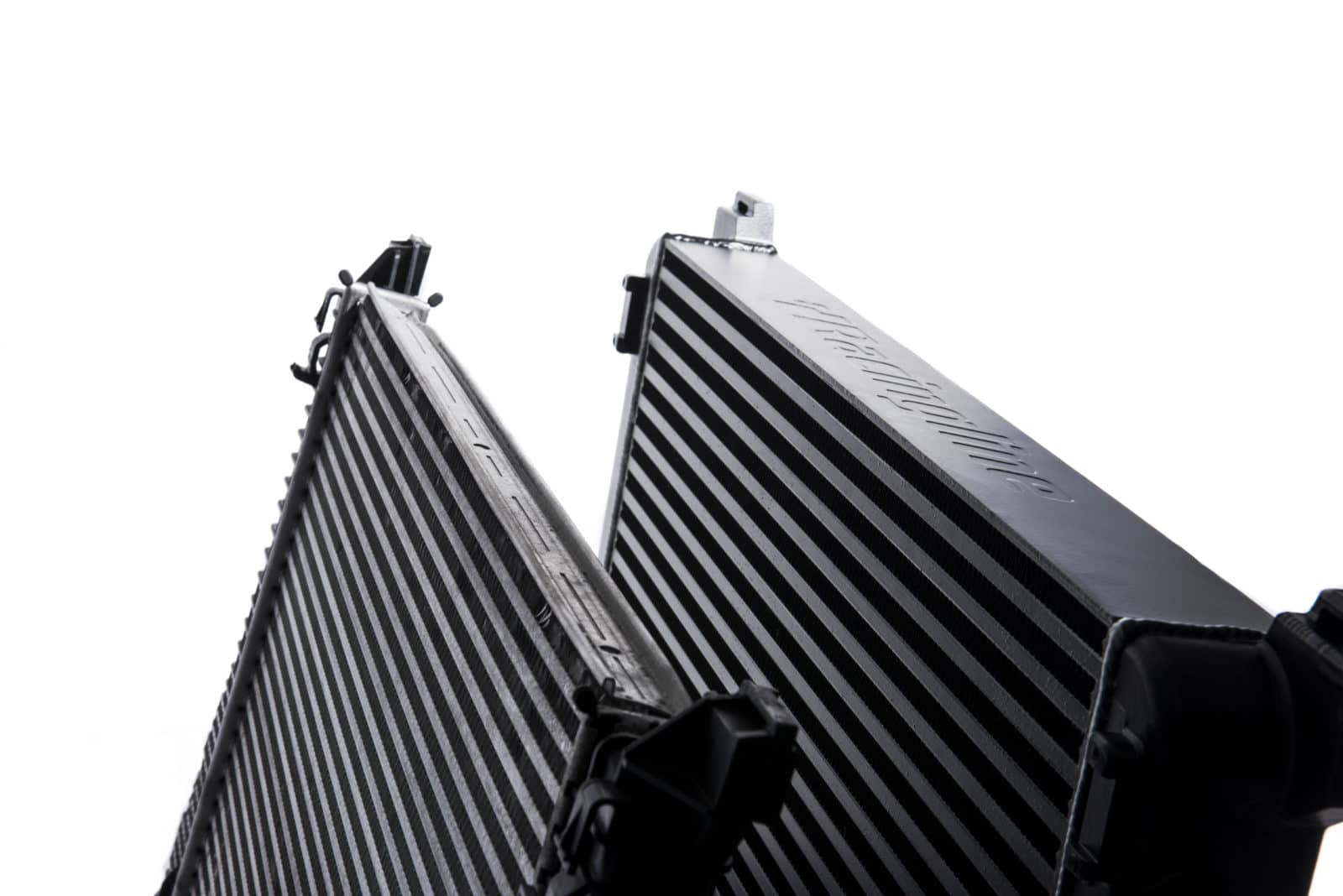

• Maximum core size: a large bar-and-plate core with tall internal tubes for high boost flow and excellent heat dissipation.
• Optimised internal design: fin density, core dimensions, and pipe flow have been developed through extensive testing to balance cooling against pressure drop.

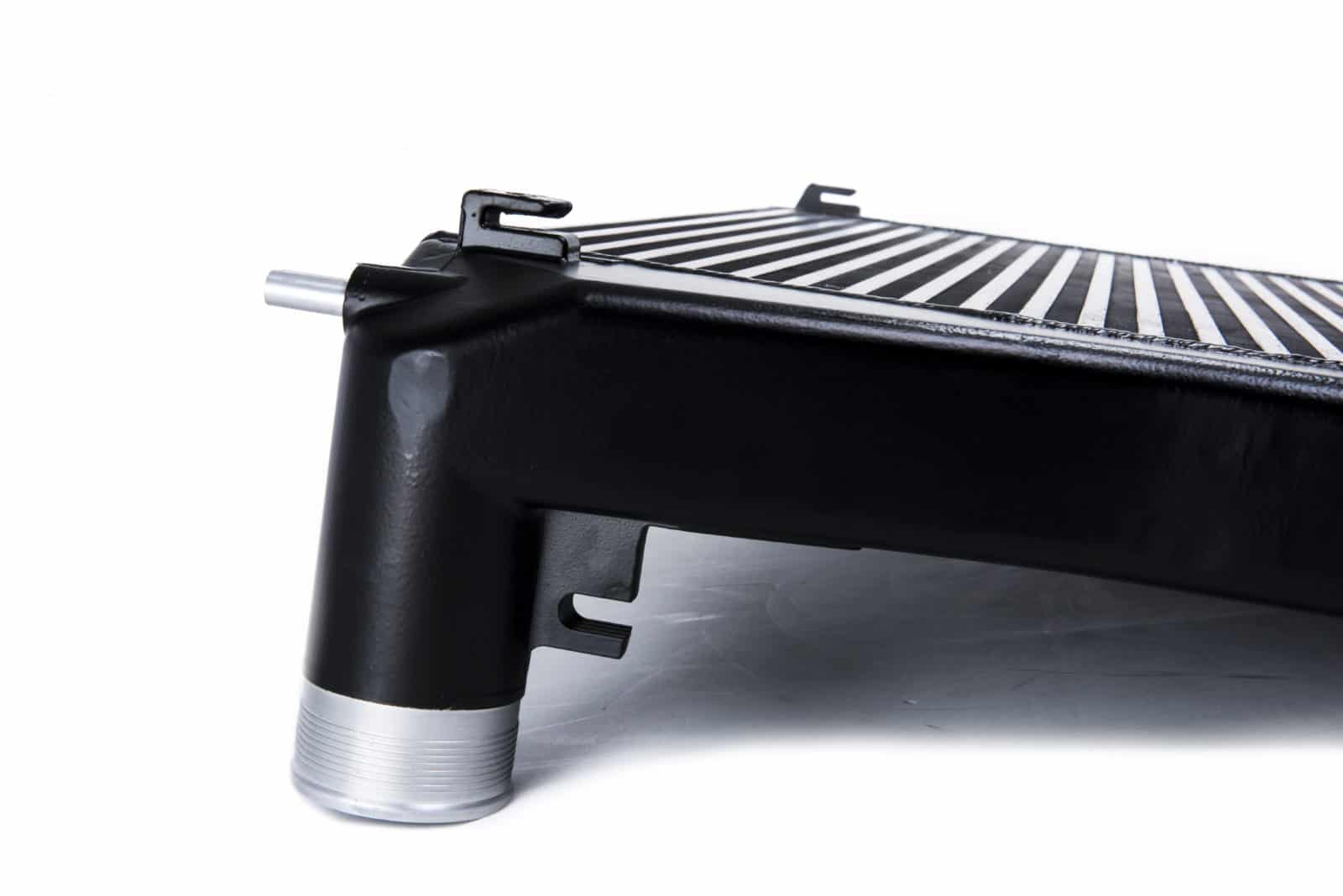

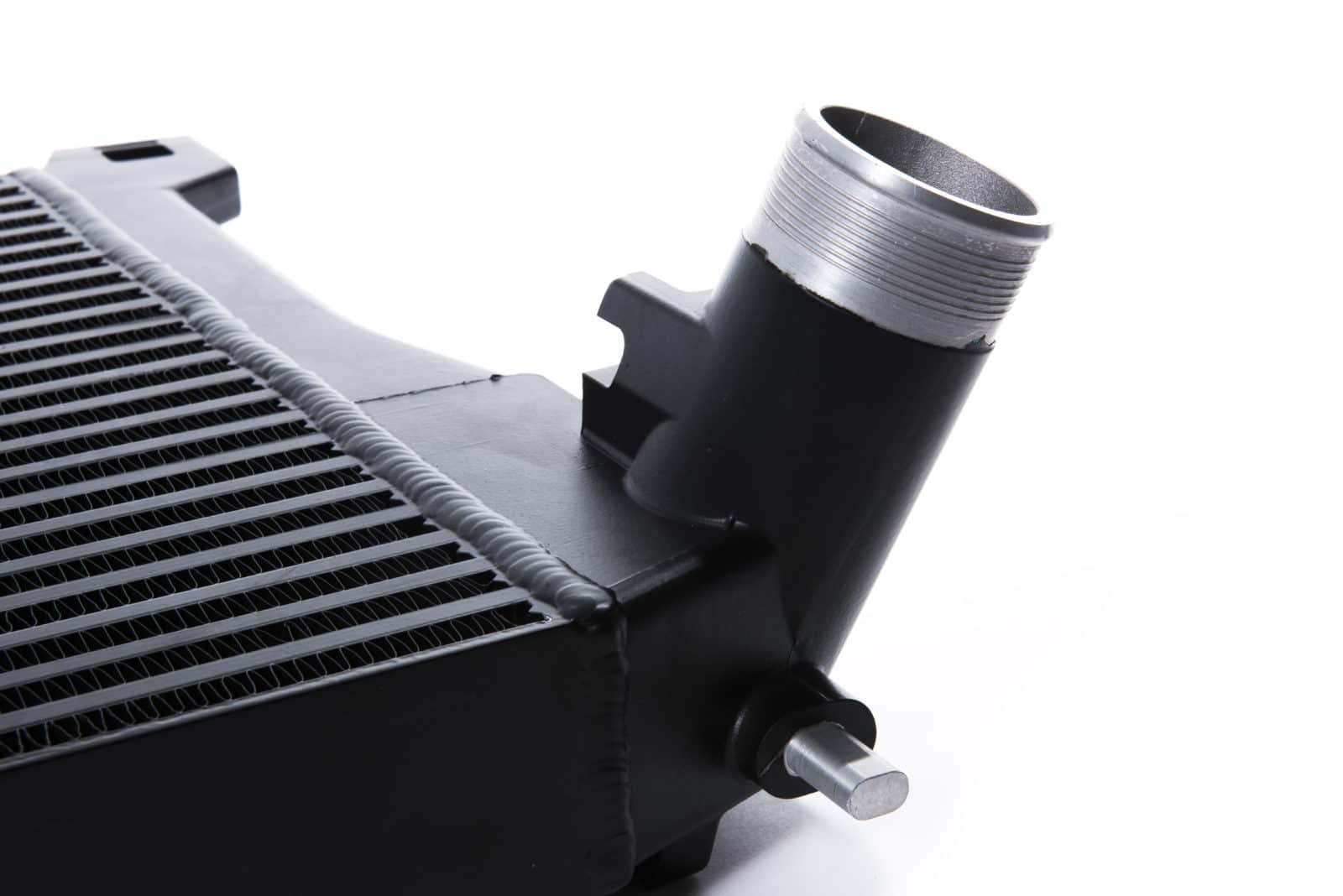

• Cast end tanks: smooth, cast aluminium end tanks reduce turbulence and ensure even airflow across the full depth of the core.
• Race-proven: developed and tested under sustained high-load conditions, suitable for road, track, and tuned applications.

The development goal

Simply fitting a bigger intercooler is not always the answer. A larger core can increase pressure drop and turbo lag if not designed carefully. Racingline’s focus was on finding the ideal balance between maximum cooling and minimum pressure loss, so you gain the cooling benefit without sacrificing throttle response.

Who it suits

This intercooler fits popular MQB-platform 2.0 TSI performance cars, including the VW Golf 7 GTI and Golf R, Audi S3 and TTS, SEAT Leon Cupra, and Skoda Octavia vRS. It is a worthwhile upgrade at every stage of tuning, from a stock car driven hard to fully Stage 2+ builds, providing consistent power delivery whether you are on a track day, a spirited road drive, or a dyno run.

Always confirm fitment for your specific vehicle using the site’s vehicle lookup or by checking the Vehicle Fitment tab before ordering.

Applications

Please note, customers are wholly responsible for checking fitment for their vehicle.
