Racingline VAG 2.0TFSI/2.0TSI/2.5TFSI/4.0TFSI Diverter Valve

Racingline Diverter Valve – VAG 2.0 TFSI / 2.0 TSI / 2.5 TFSI / 4.0 TFSI

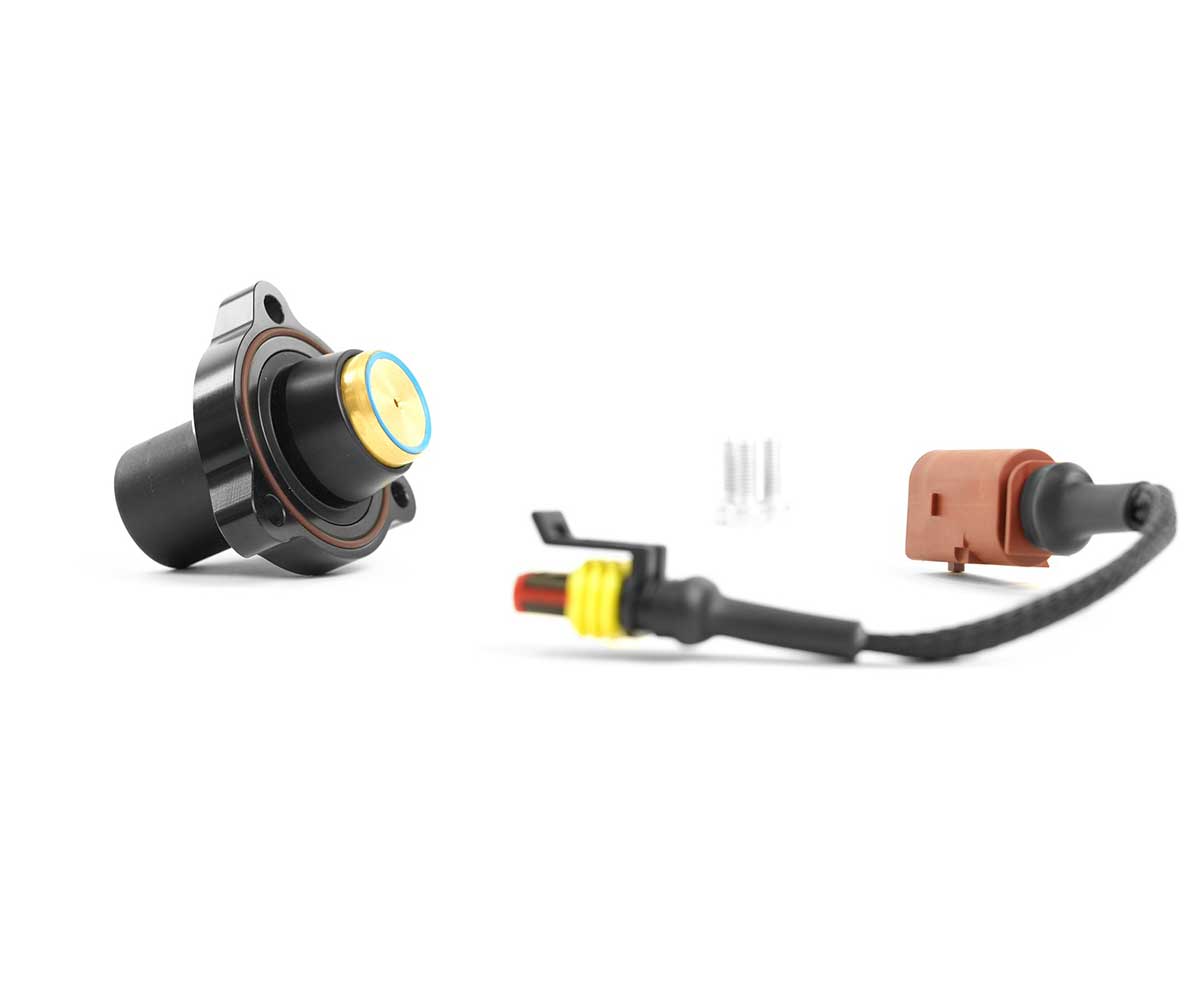

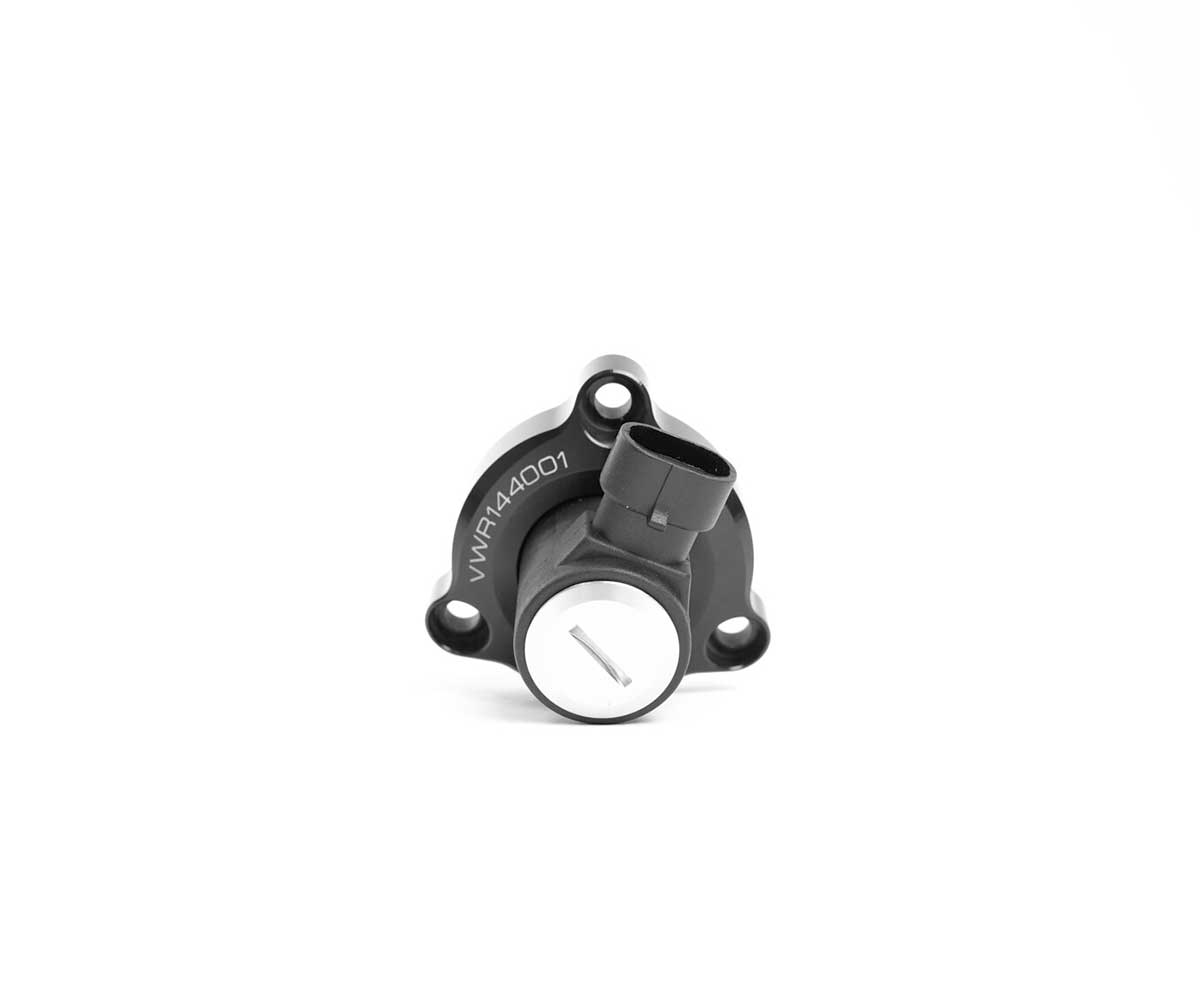

The Racingline Diverter Valve (VWR144001) is a direct replacement for the factory plastic valve fitted to a wide range of Volkswagen Group turbocharged engines. Designed and built in the UK by Racingline, it brings stronger boost control, quicker throttle response and long-term reliability to engines that often outgrow their original valves, especially once tuned.

What a Diverter Valve Does

A diverter valve sits between the turbocharger and the throttle body. When you lift off the accelerator, it releases the pressurised air built up by the turbo back into the intake system. This protects the turbo from damage and keeps boost ready for the next time you accelerate. If the valve leaks or fails, you lose boost pressure, throttle sharpness and power.

Why Upgrade the Factory Valve?

Many of the original VAG diverter valves use a plastic body with a rubber diaphragm. Under the heat and pressure of a modern turbocharged engine, particularly one running a Stage 1 or Stage 2 tune, this design can stretch, tear or fail. Common symptoms include:

• Inconsistent or fluttering boost
• Slow throttle response and a soft feel under acceleration
• Loss of power, often with no fault codes
• Repeat failures shortly after warranty replacement

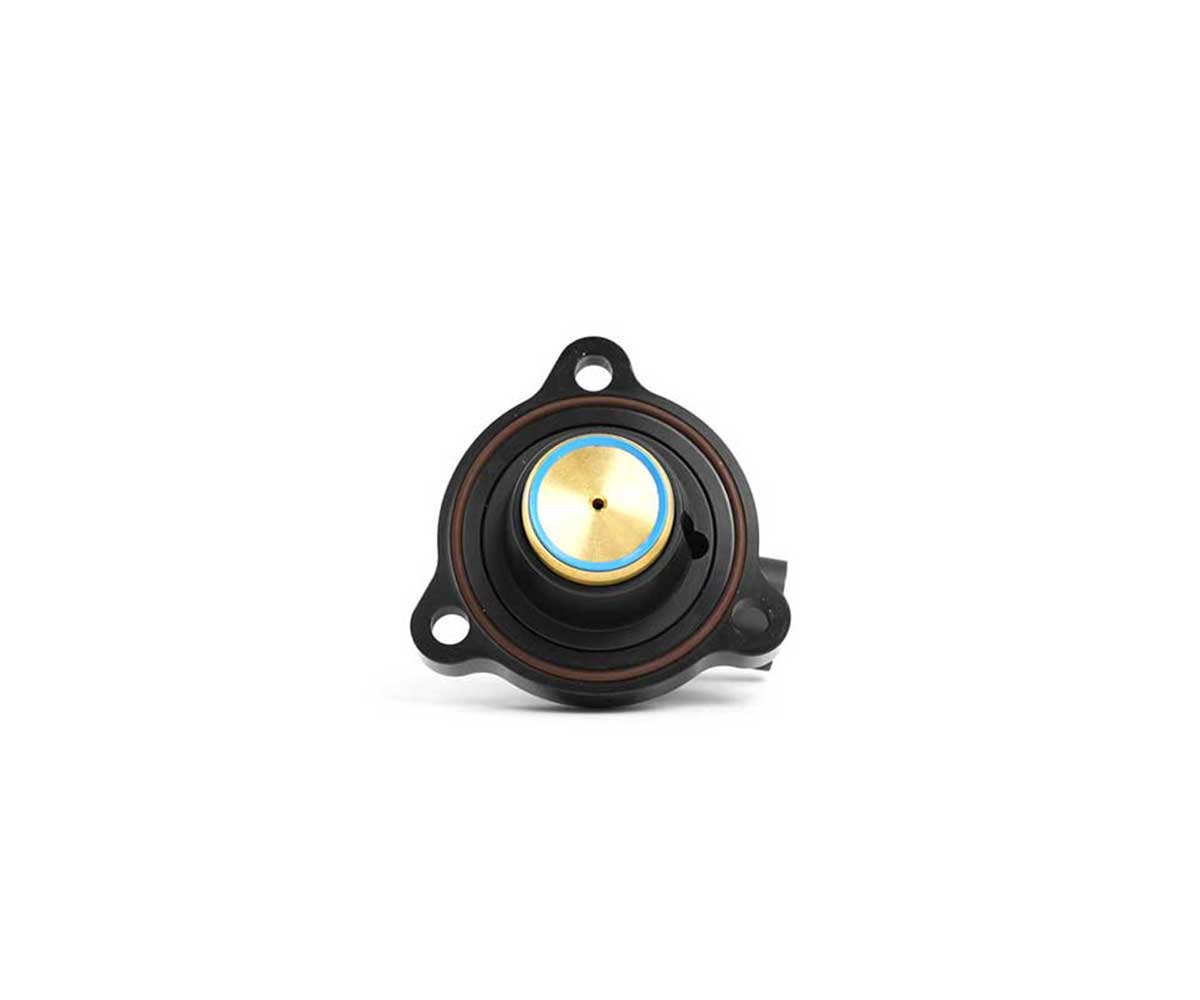

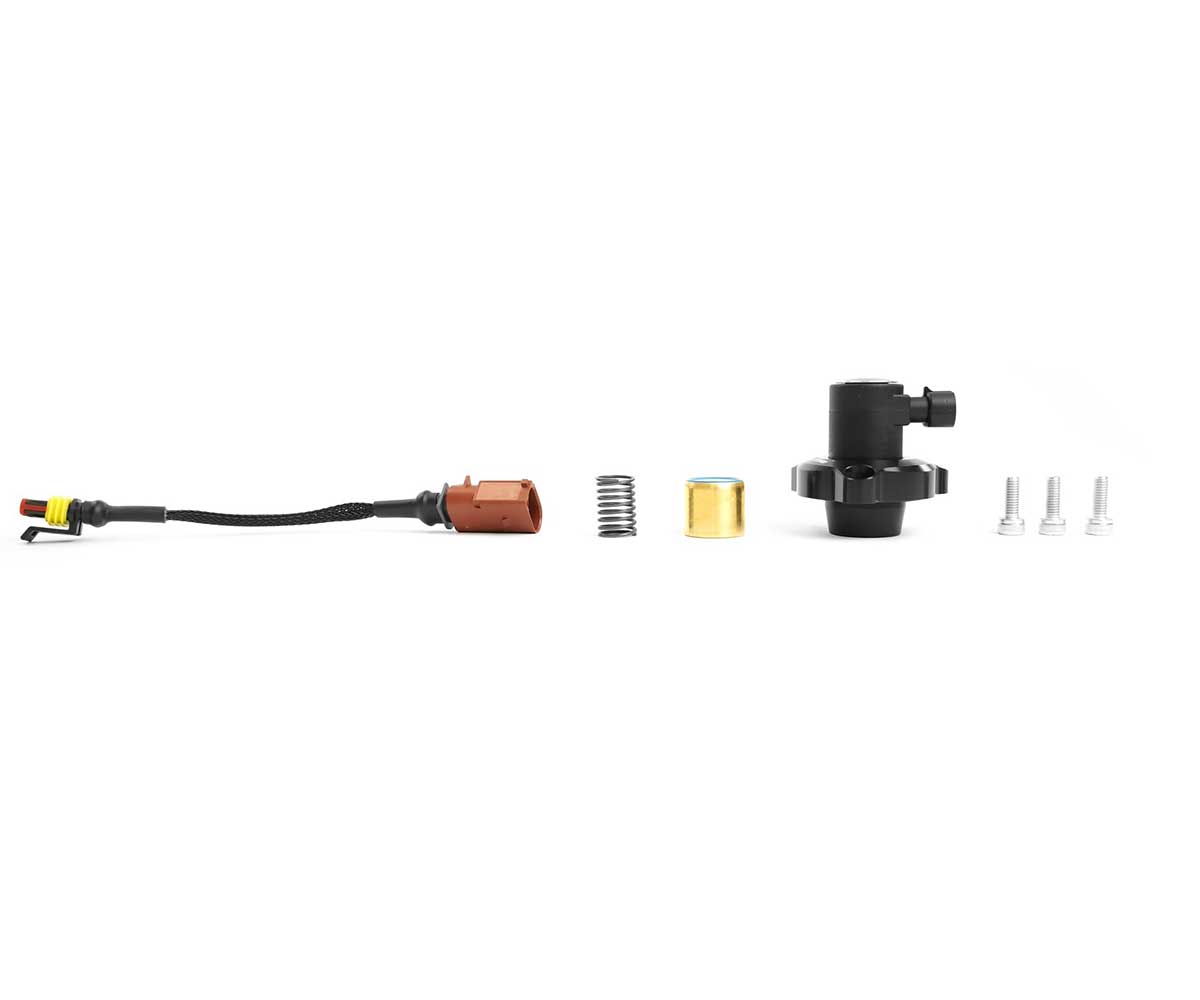

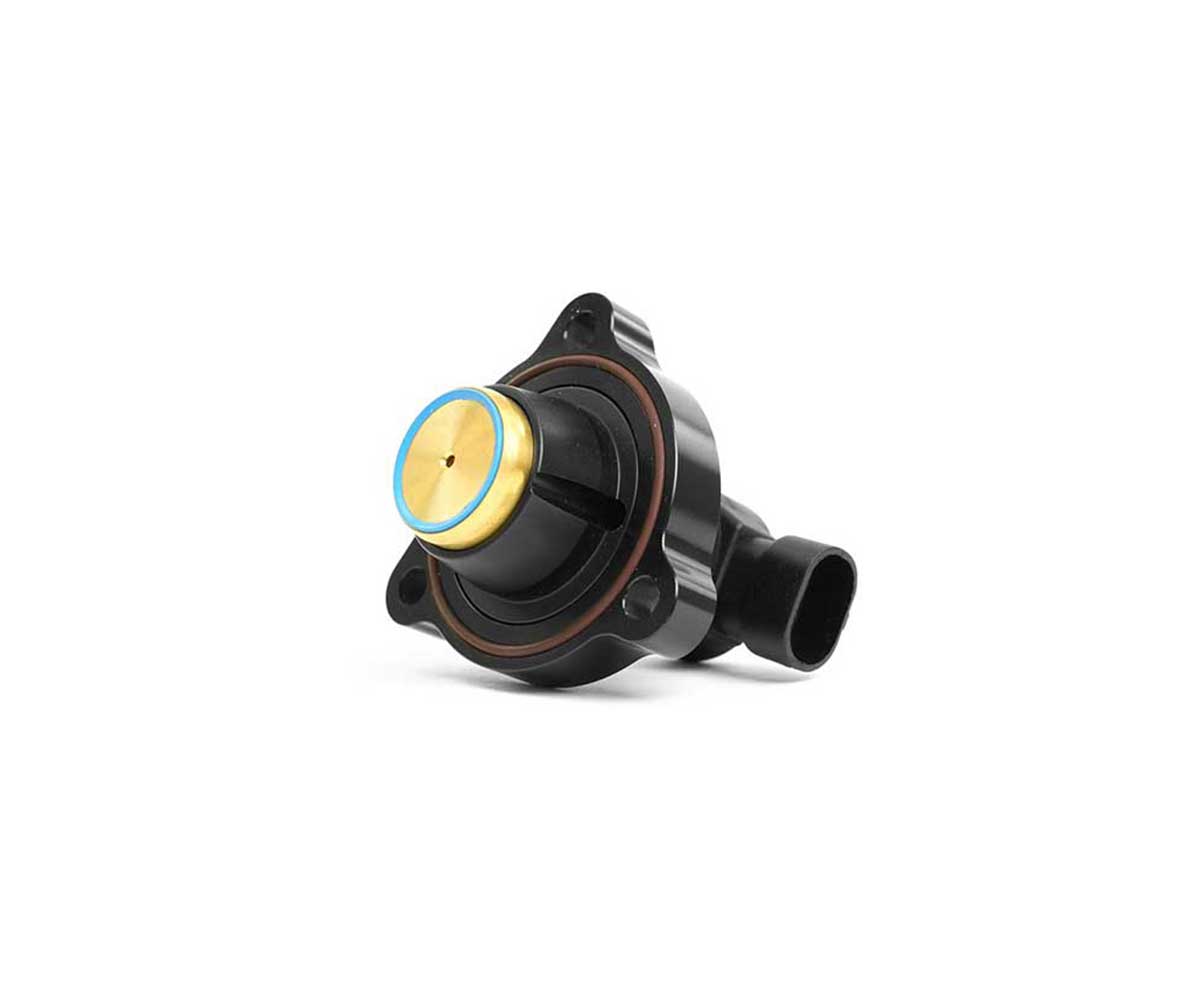

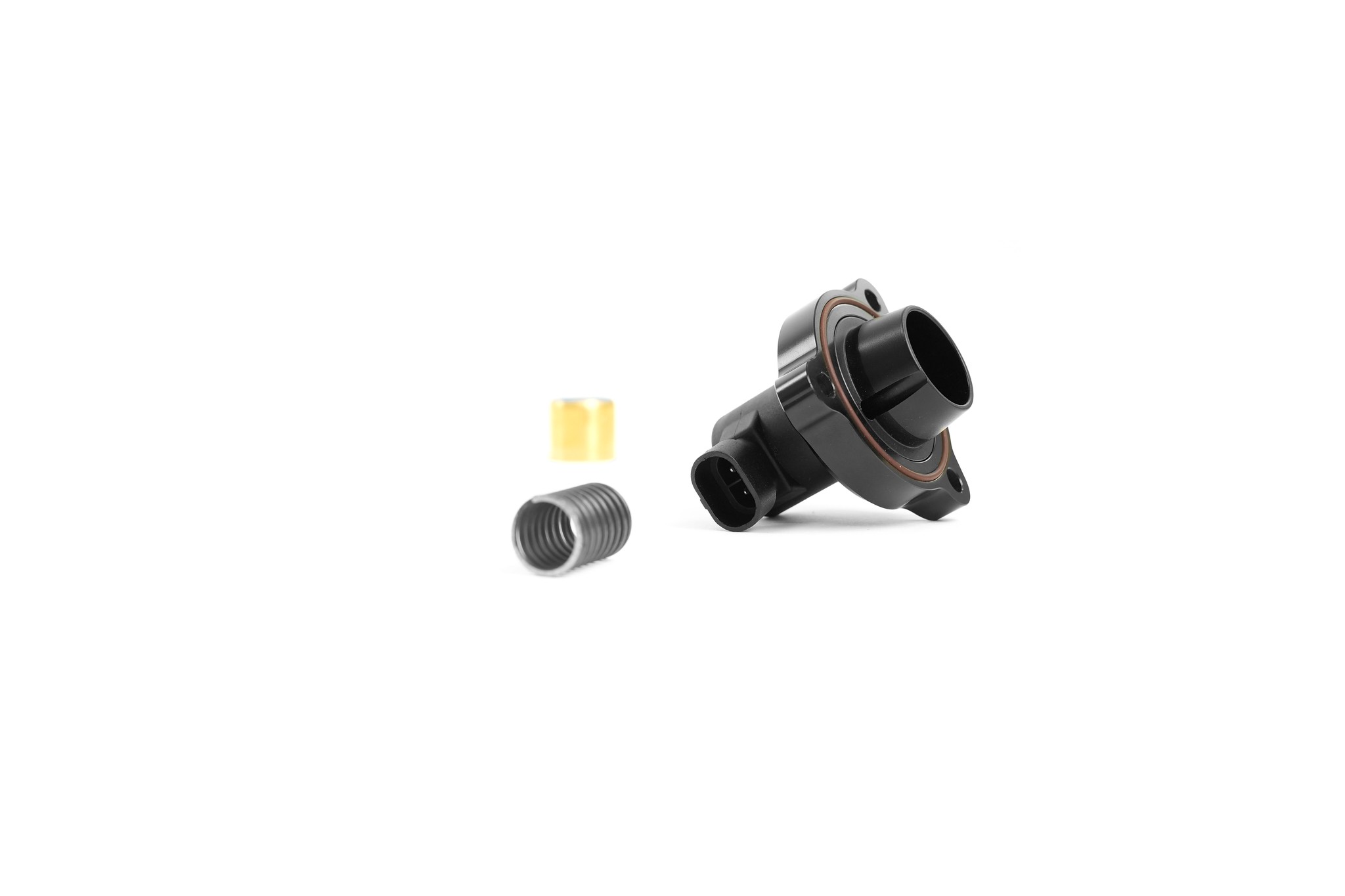

The Racingline valve replaces the diaphragm system with a precision-machined billet aluminium body and a piston-based internal design. This holds boost reliably even at elevated pressures and temperatures, so the engine delivers the power it should every time you press the throttle.

Key Benefits

• Billet aluminium construction for long-term durability
• Piston design seals firmly and resists heat soak
• Sharper throttle response and consistent boost delivery
• Suitable for standard and tuned engines, including Stage 1, 2 and beyond
• Near-OEM sound, with no loud “whoosh” on lift-off
• Lifetime warranty from Racingline

Sound Character

Unlike some aftermarket blow-off valves, the Racingline Diverter Valve is designed to keep the noise level close to factory. If you want stronger performance without drawing attention to the car, this valve is a sensible choice. It vents internally back into the intake, as the engine’s mapping expects.

Fitment Overview

This diverter valve fits a broad range of popular VAG turbocharged engines, including:

• 2.0 TFSI and 2.0 TSI engines (EA113, EA888 Gen 1, Gen 3 and Gen 3B), roughly 2003 to 2020
• 2.5 TFSI five-cylinder engines from 2009 onwards (as fitted to the Audi RS3 and TT RS)
• 4.0 TFSI V8 engines (EA824), 2013 to 2018, as fitted to Audi RS6, RS7, S6, S7, S8 and Bentley models

Important: 4.0 TFSI V8 engines require two diverter valves per car, one for each turbocharger. Please order accordingly.

To confirm fitment for your exact vehicle, use the vehicle lookup tool on the site or check the Vehicle Fitment tab on this product page.

Installation Notes

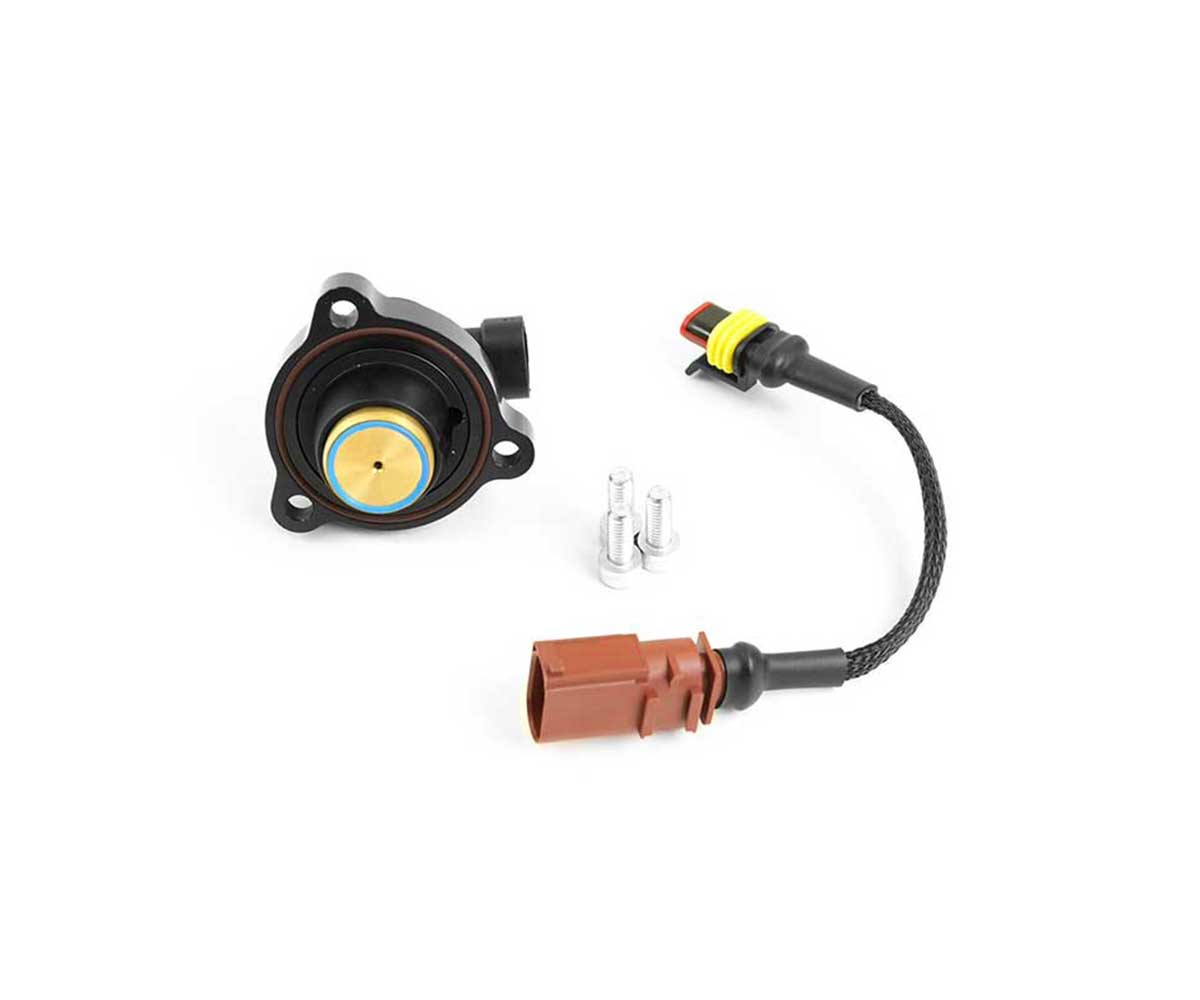

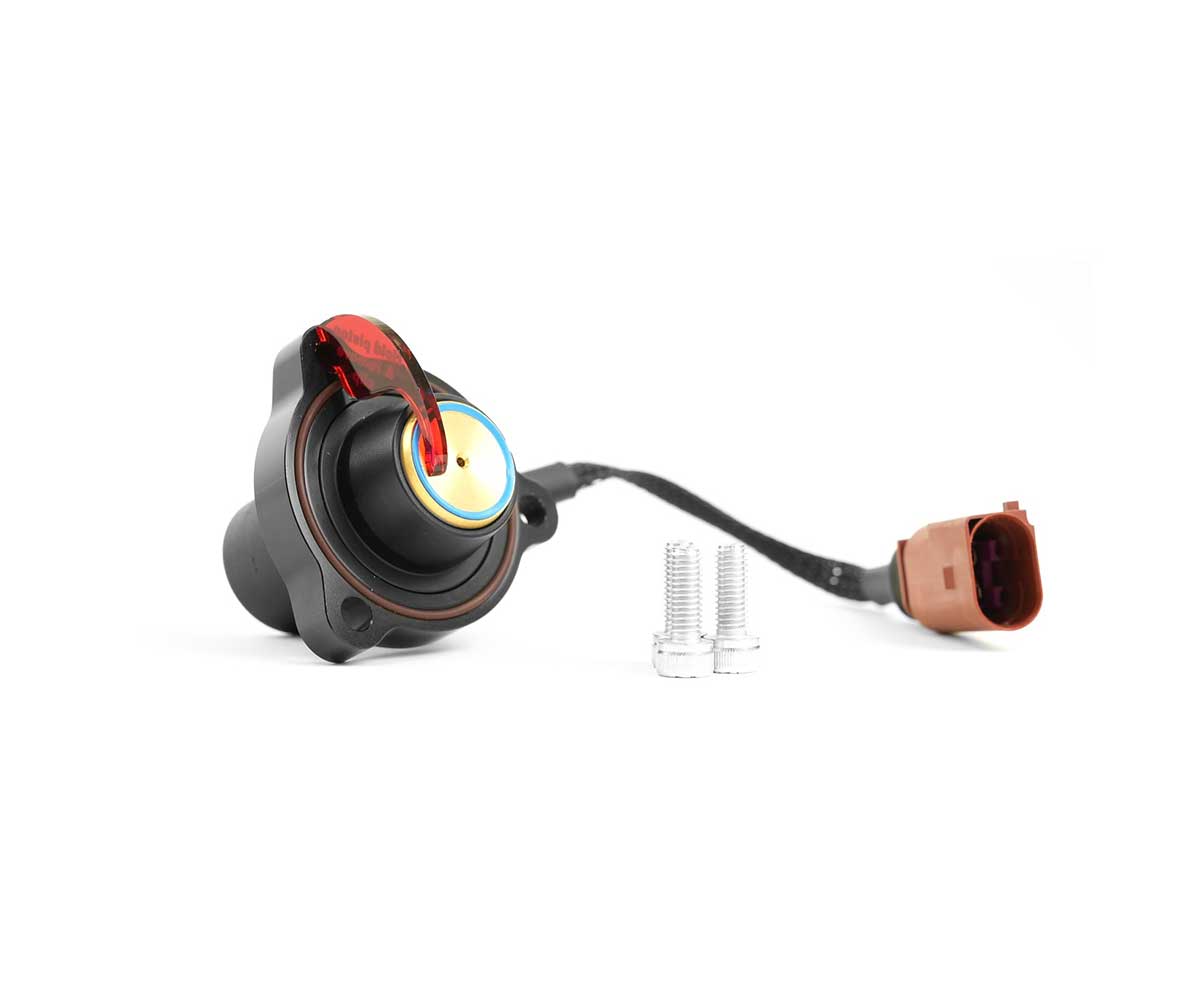

The Racingline Diverter Valve is a direct bolt-in replacement and uses the original electrical connector and mounting points. No remap or ECU changes are required for fitment. As with any boost-side component, make sure all clamps and seals are in good condition when refitting, and that the engine is cool before working on it.

Applications

Please note, customers are wholly responsible for checking fitment for their vehicle.
